Crystal Units with Built-in Temperature Sensor (MHz)

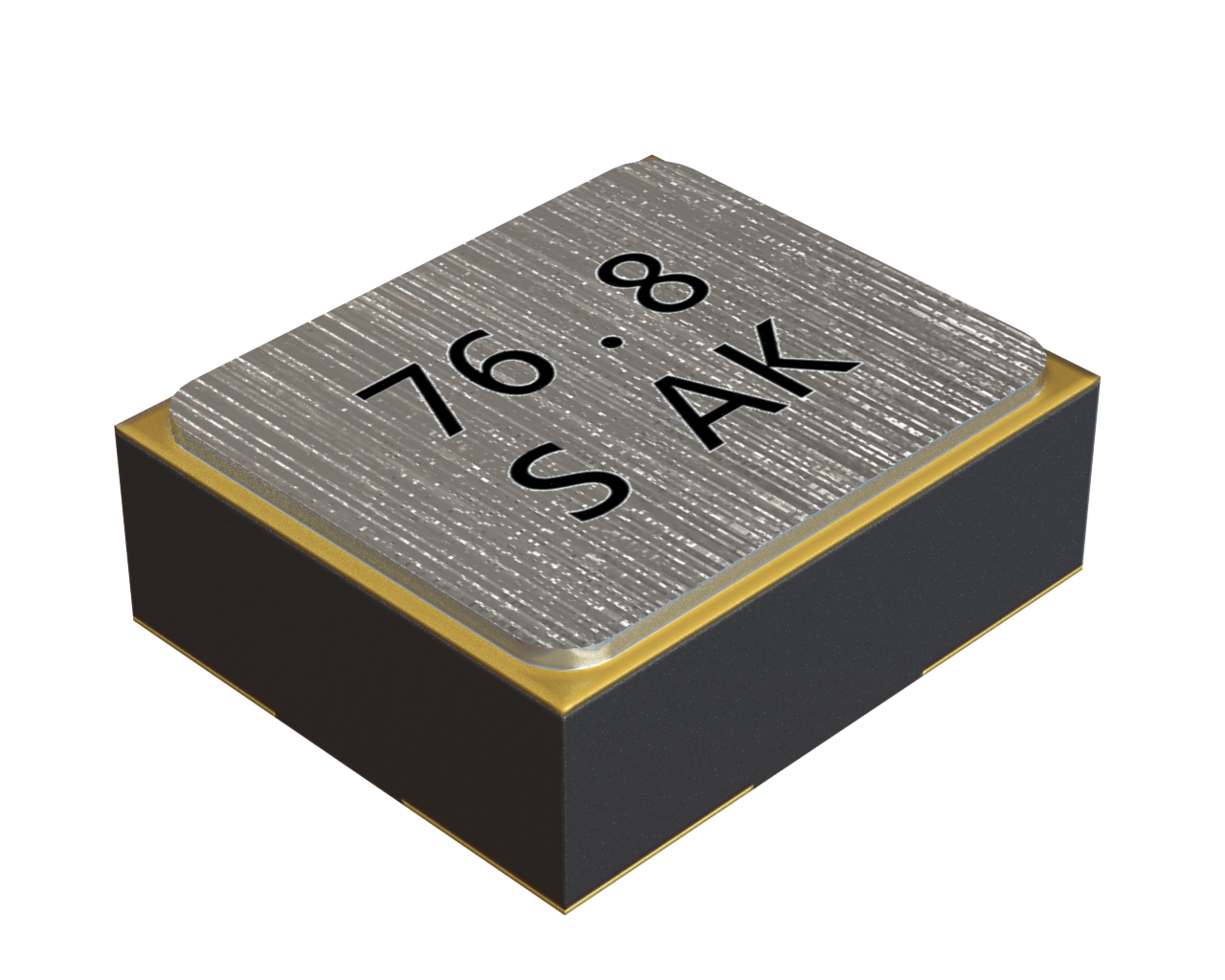

Thermistor crystal is a quartz crystal integrating temperature sensor to compensate frequency fluctuations caused by wide temperature variations, ensuring exceptional frequency stability. They are ideal for applications such as mobile communication positioning, smart factories, 5G, IoT, and automotive. Siward offers a comprehensive range of thermistor crystal, including XTL5A (2.5 x 2.0 mm)、XTL5B (2.0 x 1.6 mm)、XTL5C (1.6 x 1.2 mm)、and ultra miniature XTL5D (1.2 x 1.0 mm), supporting industrial standard temperature range of -40°C to 85°C, and AEC-Q200 automotive-grade extending to -40°C to 125°C.
Series
Package Size
(mm)
(mm)
Nominal Frequency
Frequency Stability
Temperature Range
Datasheet
XTL5D
1.2 x 1.0 x 0.5
38.4, 52, 76.8MHz
±12 to 30 ppm
-40 ~ +85℃
XTL5C
1.6 x 1.2 x 0.65
38.4, 52, 76.8MHz
±12 to 30 ppm
-40 ~ +85℃
XTL5C
1.6 x 1.2 x 0.65
38.4, 76.8MHz
±15 to 50 ppm
-40 ~ +125℃
XTL5B
2.0 x 1.6 x 0.65
19.2, 26, 38.4, 52MHz
±12 to 30 ppm
-40 ~ +85℃
XTL5B
2.0 x 1.6 x 0.65
26, 38.4, 52MHz
±15 to 50 ppm
-40 ~ +125℃
XTL5A
2.5 x 2.0 x 1.0
19.2, 26, 38.4, 52MHz
±12 to 30 ppm
-40 ~ +85℃
