Different Types of Crystal Oscillators: A Comprehensive Guide

Crystal oscillators play a crucial role in a wide array of electronic applications, from accurate timekeeping and frequency reference to signal synchronization. Utilizing the natural resonance of a vibrating quartz crystal, these oscillators generate electric signals with unparalleled frequency precision. To underscore their importance, consider that over 2 billion units are produced each year to meet global demand.

In this guide, we'll delve into four primary types of crystal oscillators, each designed to address unique requirements and operating conditions:

• VCXO (Voltage-Controlled Crystal Oscillator)
• TCXO (Temperature-Compensated Crystal Oscillator)
• VCTCXO (Voltage-Controlled Temperature-Compensated Crystal Oscillator)
• OCXO (Oven-Controlled Crystal Oscillator)

Understanding the distinct advantages of each type will empower you to make informed decisions for your specific applications and environments.

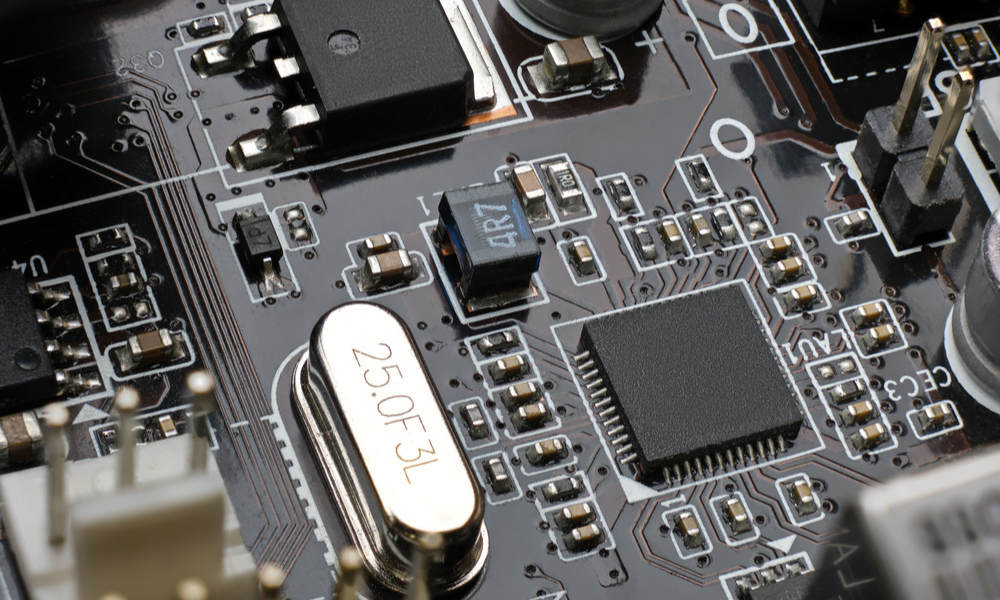

Crystal Oscillator (XO)

A Crystal Oscillator (XO) is an electronic circuit that leverages the mechanical resonance of a piezoelectric quartz crystal to generate an accurate frequency reference. These oscillators are pivotal in a variety of applications including high-speed communication networks, 5G telecommunications, data centers, and automotive systems, where they provide stable clock signals in digital circuits and aid in effective radio frequency management.

In different regions, these circuits may also be referred to as OSC or SPXO (Simple Packaged Crystal Oscillators). They are distinguished for their temperature stability, derived from the inherent stability of the quartz crystal, often measured in tens of parts per million (ppm). Key specifications of these crystal oscillators include supply voltage ensuring operational integrity within a designated range, output waveform defining the signal shape, frequency stability under varying conditions, phase noise and jitter indicating performance in maintaining a steady signal, and operating temperature delineating the functional temperature bounds. Additionally, they come in various packaging options like Surface Mount Device (SMD) and Through Hole (THD), with popular sizes being 7050, 5032, and 3225, facilitating easy integration into different systems. With this foundation, we're poised to delve into the specific types of crystal oscillators in greater detail.

Temperature-Compensated Crystal Oscillator (TCXO)

Temperature-Compensated Crystal Oscillators (TCXOs) are notable for their high frequency stability within the broad range of crystal oscillators. A TCXO incorporates a temperature-sensitive reactance circuit in its oscillation loop, which compensates for the frequency-temperature characteristics inherent to the crystal unit. This is achieved by using a thermal sensor to monitor ambient temperature changes. The thermal sensors's resistance changes with temperature, and this variation is converted into a correction voltage. This allows for real-time frequency adjustments, making TCXOs especially useful in applications requiring high precision. This makes TCXOs particularly useful in applications like telecom and networking that require high precision. As for output logic, TCXOs commonly support Clipped Sine Wave and CMOS formats. They also offer customization options such as Tri-State, low phase noise, and low jitter.

Voltage-Controlled Temperature-Compensated Crystal Oscillator (VCTCXO)

VCTCXOs feature voltage control capabilities, allowing for fine-tuning of the output frequency—crucial for high-precision applications.

VCTCXOs are particularly effective in systems like GPS receivers, mobile communication devices, and precision frequency synthesizers. Their dual attributes of temperature compensation and voltage control enable these systems to maintain accurate frequency control, even under significant temperature variations. For example, in satellite communications, even minor frequency deviations can lead to signal loss, highlighting the critical role of VCTCXOs in ensuring communication reliability.

Voltage-Controlled Crystal Oscillator (VCXO)

A Voltage-Controlled Crystal Oscillator (VCXO) is a type of crystal oscillator with a "pullable" frequency that can be finely adjusted. Undoubtedly, it is essential for applications requiring precise frequency tuning. The tuning of a VCXO is facilitated by a varactor diode, a voltage-variable capacitor whose capacitance is inversely proportional to the applied voltage. It enables the control of the oscillator's frequency around its nominal value.

This pull range typically is around ±100 ppm. In addition, VCXOs exhibit diverse output logic options, like CMOS, LVPECL, LVDS, and HCSL. It helps expand their adaptability across various applications. In the realm of various types of crystal oscillators, the VCXO stands out for its versatility and precision. Also, VCXOs have low phase noise and low jitter to enhance their performance in applications where signal integrity is necessary.

Applications of VCXOs

Voltage-Controlled Crystal Oscillators find extensive use in several critical applications:

1. Data Centers: VCXOs play a crucial role in data center equipment where synchronization and accurate timing are vital. They ensure that data transfer, storage, and processing occur seamlessly and without delays.

2. Optical Systems: Optical communication systems rely on VCXOs to maintain precise timing for efficient data transmission. The synchronization of lasers and optical receivers is vital in optical networks.

3. Switches: Network switches require precise clocking to manage data traffic efficiently. VCXOs help in ensuring synchronized and low-jitter operation of these devices.

4. 5G Radios: The rollout of 5G networks demands stringent timing requirements to support high-speed data transmission and low latency. VCXOs contribute to the synchronization of 5G base stations and radios.

Oven-Controlled Crystal Oscillator (OCXO)

An Oven-Controlled Crystal Oscillator (OCXO) is also a type of crystal oscillator renowned for its exceptional frequency stability within the 1 to 200 PPB (parts per billion) range. This is integral to its widespread utilization in telecommunications, satellite, broadcasting, and various other professional domains. The mechanism involves housing the crystal resonator and associated temperature-sensing and compensation circuits within a temperature-controlled oven to maintain an almost constant temperature despite fluctuations in ambient conditions.

This technology ensures that the OCXO operates at a crystal's turning point, where the frequency vs. temperature curve's slope is zero. As a result, it contributes to minimal frequency deviation with temperature variations. For instance, in telecommunications, the stability offered by OCXOs is critical for synchronizing data transmission and reducing signal jitter.

Several options are also available for OCXOs. For example, a company may offer high-end OCXOs that meet Military- and Space-grade standards, with features like low phase noise and vibration absorption. Advanced models like Double Oven OCXOs (DOCXO) are used when even tighter stabilities are required. They feature two temperature controllers and better insulation but at the expense of larger package sizes and higher power consumption.
