Understanding Jitter and Phase Noise: The Key to High-Performance Oscillators

Back List
A high-tech data center with blue and orange LED lights highlighting server racks, embodying a setting optimized for managing jitter and phase noise in data transmissions.

In high-frequency electronics, jitter and phase noise measure oscillator performance. Jitter is the timing variation of a signal, while phase noise measures phase changes in the frequency domain. Understanding jitter and phase noise is important, as it affects signal quality in applications like RF systems and precision timing devices.

Both of these factors induce uncertainties and disturbances in oscillators. Therefore, they influence the bit error rate, signal-to-noise ratio, and, ultimately, the reliability and versatility of the system. Along similar lines, this article analyzes the technical differences and implications of jitter and phase noise. It also explains their influence on oscillator performance and offers insights invaluable for readers aiming to optimize high-performance applications.

What is Jitter?

Jitter is the term used to describe the irregularities in the timing of digital signal waveforms during transmission. It appears as fluctuations in both the time and frequency domains. While originating from instabilities in electrical signal reading devices and interference along signal pathways, jitter is a key indicator for evaluating the stability of high-frequency reference signal sources. It makes the discussion of jitter and phase noise vital in understanding signal integrity.

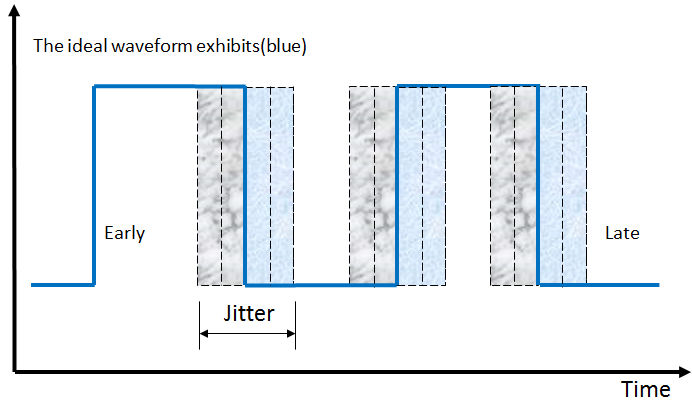

Diagram of a square waveform with deviations illustrating jitter against time.

Impact of Jitter on Signal Timing

Jitter, particularly in high-speed data transmission systems, can influence signal timing. The presence of jitter prompts variations in the arrival times of signal pulses. It causes them to arrive earlier or later than expected. In scenarios such as high-speed clock source data transmission, excessive jitter can result in adjacent signals interfering with each other. Consequently, it impacts the bit error rate and reduces the accuracy of signal interpretation.

Impact on Overall System Performance

Jitter induces a range of detrimental effects on overall system performance in applications like high-speed data processing, ADC-DAC conversion, and radar systems. For instance, in radar systems, jitter on the carrier signal translates to position accuracy, introducing "fuzziness" on the display and compromising the system's reliability. In communication systems, including those employed for online content delivery, jitter can lead to a decline in image and sound quality. This highlights the importance of thoroughly evaluating jitter in comparison to phase noise during system design and assessment.

Types of Jitter

  • Period Jitter (Peak-to-Peak): This category combines period jitter, focusing on the variation in signal timing across multiple cycles, with peak-to-peak jitter, which measures extreme deviations over several cycles. It's critical in applications like telecommunications for maintaining precise timing and ensuring minimal signal errors.
  • RMS Jitter: Although not explicitly mentioned in the original passage, RMS jitter would relate to the root mean square of time deviation in signals. This metric would provide a statistical measure of signal variability, important in assessing overall system stability.
  • Random Jitter: This could be associated with cycle-to-cycle jitter, as it involves immediate variations in signal timing from one cycle to the next. Random jitter reflects instantaneous changes and is vital for ensuring the immediate stability of signal transmission.
  • Deterministic Jitter: Phase jitter could fall under this category, as it involves a more predictable and systematic variation in signal timing, derived from a phase noise plot. This type of jitter is crucial in applications like broadcasting, where stable and high-quality signal transmission is required.
  • Accumulated Jitter (Long-term Jitter): While not directly mentioned, this category would encompass the long-term trends in signal variability. It would be an aggregate measure of the jitter over an extended period, crucial for evaluating the long-term reliability of signal transmissions in various applications.

What is Phase Noise?

Phase noise is a critical factor in assessing the short-term phase/frequency instability of an oscillator or other RF/microwave components. It is defined as the ratio of the power within a 1Hz bandwidth at a specified offset frequency to the total power of the carrier. This aspect of phase noise signifies fluctuations in the phase of an oscillator's output signal in the frequency domain. Understanding phase noise is essential for delving into the nuances of jitter versus phase noise in high-frequency communication systems, as it directly impacts signal stability.

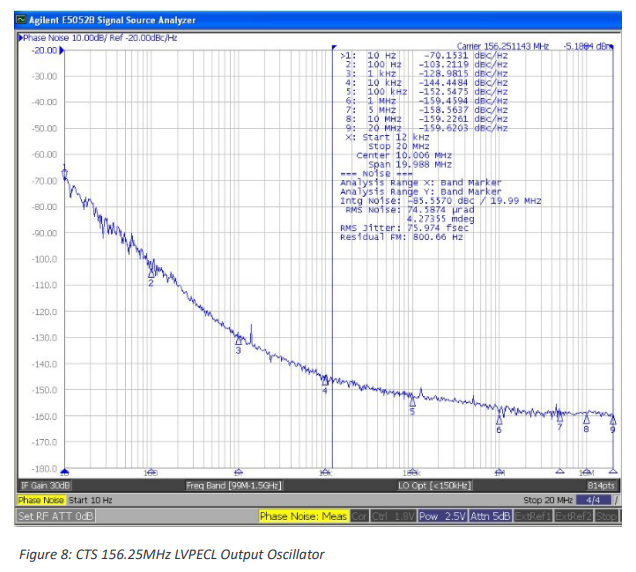

Screenshot of a signal analyzer display showing a descending phase noise plot with frequency markers and measurement details.

Impact of Phase Noise on Frequency Stability

Phase noise directly impacts the frequency stability of a signal. It contributes to fluctuations and deviations in the signal's ideal phase. Indeed, this noise is close to the carrier frequency, so it modulates the oscillator to create unwanted frequency in its output. In high-frequency applications like radar and telecommunications, keeping low phase noise guarantees frequency stability, improves the signal-to-noise ratio, and minimizes bit error rates.

Impact on Overall System Performance

In systems where high precision and stability are requisite, phase noise can be a limiting factor for overall performance. In communication systems, for instance, high phase noise levels can degrade signal integrity while leading to image and sound quality deterioration in content delivery services. Furthermore, in applications like radar and satellite communication, phase noise introduces inaccuracies to compromise the consistency and accuracy of the system. It renders the study of jitter and phase noise fundamental for optimizing performance.

Phase Jitter

Phase jitter quantifies the variability in a signal's timing by integrating phase noise across specific frequency offsets from the carrier signal. It calculates the energy present in these frequency offsets relative to the carrier signal's energy. This is achieved by integrating the area under the phase noise plot, providing a comprehensive measure of the signal's timing stability. This metric is crucial in high-precision communication systems where maintaining signal integrity is paramount.

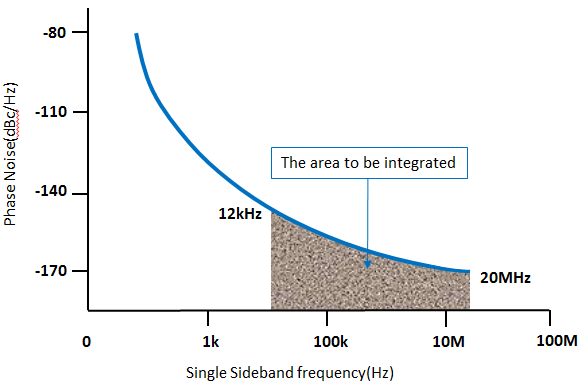

Graph of phase noise versus frequency with a shaded area indicating the section for integration between 12kHz and 20MHz.

Jitter and Phase Noise

Together, high jitter and phase noise can significantly undermine the efficiency and reliability of communication systems. They can cause a range of issues from increased bit error rates to a reduction in the signal-to-noise ratio, thereby affecting the clarity and accuracy of the data being transmitted. In designing and evaluating communication systems, particularly those operating in environments that require stringent precision and reliability, it is imperative to thoroughly assess and minimize the impact of jitter and phase noise. Doing so not only ensures the fidelity and efficiency of data transfer but also enhances the long-term stability and reliability of the communication system. This emphasizes the necessity of incorporating advanced techniques and technologies in system design to effectively manage these factors, ensuring the highest standards of data transmission are met.

Siward's Low Jitter and Low Phase Noise Oscillators

In today's fast-paced technological landscape, industries like 5G telecommunications, IoT, automotive, and high-speed networking are rapidly evolving. The demand for reliable and efficient components in 5G networks and data centers is soaring, while the burgeoning IoT and wearable technology markets require precision and miniaturization. In the automotive sector, especially with the rise of ADAS, the need for precise timing components is more critical than ever.

Addressing these industry trends and demands, Siward's product range, particularly their Low Jitter and Low Phase Noise Oscillators, stands out. These products are not just diverse; they are meticulously crafted to meet the needs of an ever-advancing technological world, making Siward a key player in driving the next wave of innovations in these dynamic sectors.
